Custom Banner Ads

1. Description

Use banner ad placements to configure native ads.

Please visit here to view the support scope of this feature.

2. How to Use

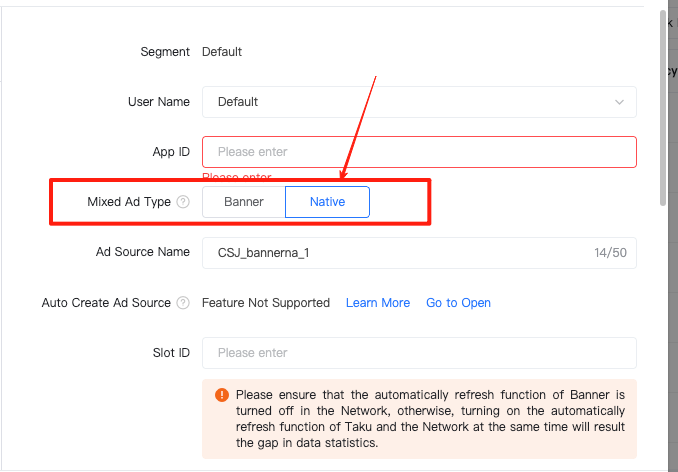

  1. Create a banner ad placement in the management dashboard and add or edit ad sources that support ad format mixing.

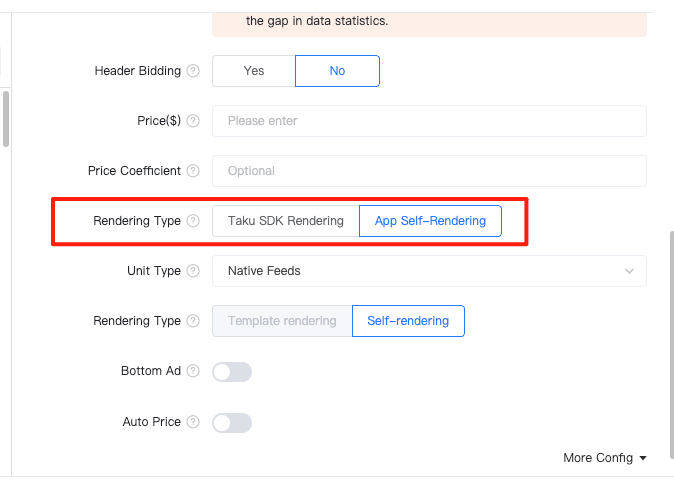

  1. If the dashboard chooses Taku rendering (SDK rendering), the UI elements cannot be set up with custom layouts. You only need to correctly specify the banner container size without modifying the code, and you can skip the following steps.

  3. If the dashboard chooses self-rendering, additional code integration is required. Please read the following notes before proceeding with code integration.

If your dashboard configuration uses a self-rendering solution, please note the following:

  • When you get UI elements and configure the layout yourself, if the show callback is not triggered when calling display, it means that your rendered UI elements are insufficient or there are layout issues, causing the ad platform to determine it as an invalid display. You need to adjust according to the actual situation to meet the ad platform requirements.

  • If you don't implement self-rendering to return an ad View in the code, the SDK's built-in layout style will be used for rendering by default.

  • When you set self-rendering to return an ad View in the code, the ad background is fully transparent by default.

  • For the handling of mainImageView or mediaView in the diagram below, their layouts are consistent. When mediaView has a value, layout mediaView and display it on top.

  1. Recommended rendering elements and diagram descriptions are as follows:

Some ad elements must be rendered, while others are optional. Please refer to the end of this article for details.
Ad element fields may not have values, so null checking is required before use.

3. Sample Code

php Copy
#import <Masonry/Masonry.h>

- (void)showBanner {
    // Check if the ad is ready before displaying
    if ([[ATAdManager sharedManager] bannerAdReadyForPlacementID:@"your banner placementID"]) {
         // Remove any existing old BannerView
        NSInteger tag = 3333;
        [[self.view viewWithTag:tag] removeFromSuperview];
         //Retrieve banner view

        ATShowConfig *showConfig = ATShowConfig.new;
        // If there's no scene configuration, use default scene by passing an empty string
        showConfig.scene = @"your scene id";
        // Pass-through parameters when displaying
        showConfig.showCustomExt = @"testShowCustomExt";
        __weak __typeof(self)weakSelf = self;

        ATBannerView *bannerView = [[ATAdManager sharedManager] retrieveBannerViewForPlacementID:@"your banner ad id"
                                                                config:showConfig
                                                                nativeMixBannerViewBlock:^(ATNativeBannerView * _Nonnull nativeBannerView) {
                                                                // When Taku backend chooses self-rendering, you need to set constraints for ATNativeBannerView. This callback won't be triggered if Taku rendering is selected
                                                                        [weakSelf developerSlefRender:nativeBannerView];
                                                               }];

        if (bannerView != nil) {
            bannerView.delegate = self;
            bannerView.presentingViewController = self;
            bannerView.translatesAutoresizingMaskIntoConstraints = NO;
            bannerView.tag = tag;
            [self.view addSubview:bannerView];
            //Layout banner
            [self.view addConstraint:[NSLayoutConstraint constraintWithItem:self.view attribute:NSLayoutAttributeCenterX relatedBy:NSLayoutRelationEqual toItem:bannerView attribute:NSLayoutAttributeCenterX multiplier:1.0f constant:.0f]];
            [self.view addConstraint:[NSLayoutConstraint constraintWithItem:bannerView attribute:NSLayoutAttributeTop relatedBy:NSLayoutRelationEqual toItem:self.view attribute:NSLayoutAttributeTop multiplier:1.0f constant:CGRectGetHeight([UIApplication sharedApplication].statusBarFrame) + CGRectGetHeight(self.navigationController.navigationBar.frame)]];
            [self.view addConstraint:[NSLayoutConstraint constraintWithItem:bannerView attribute:NSLayoutAttributeWidth relatedBy:NSLayoutRelationEqual toItem:nil attribute:NSLayoutAttributeNotAnAttribute multiplier:1.0f constant:_adSize.width]];
            [self.view addConstraint:[NSLayoutConstraint constraintWithItem:bannerView attribute:NSLayoutAttributeHeight relatedBy:NSLayoutRelationEqual toItem:nil attribute:NSLayoutAttributeNotAnAttribute multiplier:1.0f constant:_adSize.height]];
        } else {
        NSLog(@"Banner ad's not ready for placementID:%@", @"your banner placementID");
    }
}

 - (void)developerSlefRender:(ATNativeBannerView *)nativeBannerView {

    // Only render part as an example
    [nativeBannerView mas_remakeConstraints:^(MASConstraintMaker *make) {
        make.width.mas_equalTo(350);
        make.height.mas_equalTo(150);
        make.center.mas_equalTo(nativeBannerView.superview);
    }];

    [nativeBannerView.textLabel mas_remakeConstraints:^(MASConstraintMaker *make) {
        make.left.mas_equalTo(nativeBannerView);
        make.right.mas_equalTo(nativeBannerView);
        make.height.mas_equalTo(30);
        make.bottom.mas_equalTo(nativeBannerView.mas_bottom).offset(-5);
    }];

    [nativeBannerView.titleLabel mas_remakeConstraints:^(MASConstraintMaker *make) {
        make.left.mas_equalTo(nativeBannerView);
        make.right.mas_equalTo(nativeBannerView);
        make.height.mas_equalTo(30);
        make.bottom.mas_equalTo(nativeBannerView.textLabel.mas_top).offset(-5);
    }];

    // Add click registration controls
    NSMutableArray *regisArray = [NSMutableArray array];
    if (nativeBannerView.textLabel) {
        [regisArray addObject:nativeBannerView.textLabel];
    }

    if (nativeBannerView.titleLabel) {
        [regisArray addObject:nativeBannerView.titleLabel];
    }
    [nativeBannerView registerClickableViewArray:regisArray];
}

4. UI Elements List

For recommended rendering components, if you choose not to render them, you need to confirm whether the ad platform's display exposure callback is triggered normally.

API Element Type Rendering Required Rendering Requirement Description
titleLabel (corresponds to title) UILabel Recommended Ad title, recommended to display
textLabel (corresponds to mainText) UILabel Optional Ad description text, depends on UI space
ctaLabel (corresponds to ctaText) UILabel Optional Call-to-action button text
advertiserLabel (corresponds to advertiser) UILabel Conditionally Required Must render when using Yandex platform
iconImageView (corresponds to iconUrl/icon) UIImageView Recommended Ad icon, recommended to display
logoImageView (corresponds to logoUrl/logo) UIImageView Required Platform logo must be displayed
mainImageView (corresponds to imageUrl/mainImage) UIImageView Recommended Need to confirm display exposure callback if not rendered
adImageView UIImageView Recommended Ad "Ad" identifier image
ratingLabel (corresponds to rating) UILabel Optional Rating information
sponsorLabel UILabel Optional Sponsor information
domainLabel (corresponds to domain) UILabel Conditionally Required Must render only for Yandex platform
warningLabel (corresponds to warning) UILabel Conditionally Required Must render only for Yandex platform
dislikeButton UIButton Recommended Universal close button, recommended to keep
netWorkMediaView (corresponds to videoUrl) UIView Recommended Recommended to add for video ads, need to confirm display exposure callback if not rendered
netWorkMediaBackView UIView Optional Background of media view, only created when there's no MediaView and main image mainImageView
netWorkOptionView UIView Recommended Ad platform option view, recommended to keep
