自定义插屏广告

1. 说明

使用插屏广告位配置原生广告源

请前往这里查看本功能的支持范围

2. 开发者后台配置

管理后台创建插屏广告位，并添加或编辑支持广告样式混用的广告源

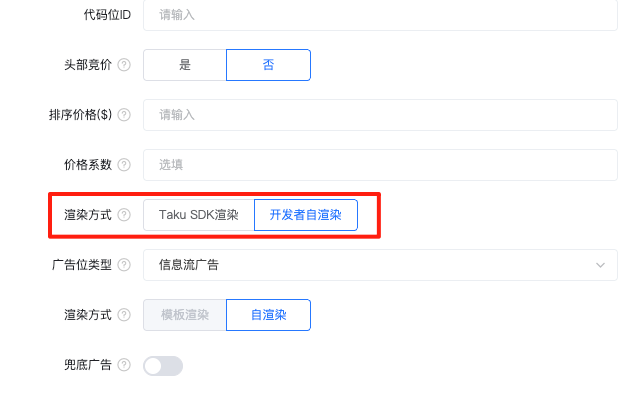

决定渲染方式，如果选择SDK渲染，不用额外添加集成代码。选择开发者自渲染需要添加额外的集成代码

3. SDK配置

若配置选择SDK渲染：由SDK内置的布局样式进行渲染，不用额外设置代码
若配置选择开发者自渲染：不使用SDK内置的布局样式，自定义样式渲染广告。在广告展示时使用以下方法：

步骤 1，展示插屏广告时，使用以下 API

objc 复制代码

[[ATAdManager sharedManager] showInterstitialWithPlacementID:@"your placement id" scene:@"your scene id" inViewController:inViewController delegate:self nativeMixViewBlock:^(ATSelfRenderingMixInterstitialView * _Nonnull selfRenderingMixInterstitialView) {
    [weakSelf renderSelfWith:selfRenderingMixInterstitialView];
}];

步骤 2，在nativeMixViewBlock:中对组件进行赋值并布局，示例如下:

objc 复制代码

- (void)renderSelfWith:(ATSelfRenderingMixInterstitialView *)selfRenderingMixInterstitialView {

    CGRect rect = selfRenderingMixInterstitialView.frame;

    UIImageView *bigImage = [[UIImageView alloc] initWithFrame:CGRectMake(0, 0, rect.size.width, rect.size.height)];
    [bigImage setContentMode:UIViewContentModeScaleAspectFit];
    [bigImage sd_setImageWithURL:[NSURL URLWithString:selfRenderingMixInterstitialView.mainImageURLString]];
    [selfRenderingMixInterstitialView addSubview:bigImage];

    UIView *mediaView = [selfRenderingMixInterstitialView networkMediaView];
    if (mediaView) {
        mediaView.frame = CGRectMake(0, 0, rect.size.width, rect.size.height);
        [selfRenderingMixInterstitialView addSubview:mediaView];
    }

    UIView *optionView = [selfRenderingMixInterstitialView networkOptionsView];
    if (optionView) {
        optionView.frame = CGRectMake(0, rect.size.height - 30, 25, 25);
        [selfRenderingMixInterstitialView addSubview:optionView];
    }

    UIImageView *iconImage = [[UIImageView alloc] initWithFrame:CGRectMake(20, rect.size.height - 200, 80, 80)];
    [iconImage setContentMode:UIViewContentModeScaleAspectFit];
    [iconImage sd_setImageWithURL:[NSURL URLWithString:selfRenderingMixInterstitialView.iconImageURLString]];
    [selfRenderingMixInterstitialView addSubview:iconImage];
    iconImage.layer.masksToBounds = YES;
    iconImage.layer.cornerRadius = 8;

    UILabel *label = [[UILabel alloc] init];
    label.text = selfRenderingMixInterstitialView.titleString;
    label.textColor = [UIColor whiteColor];
    label.frame = CGRectMake(120, rect.size.height - 190, 200, 30);
    [selfRenderingMixInterstitialView addSubview:label];

    UILabel *label2 = [[UILabel alloc] init];
    label2.text = selfRenderingMixInterstitialView.textString;
    label2.textColor = [UIColor whiteColor];
    label2.frame = CGRectMake(120, rect.size.height - 160, 200, 30);
    [selfRenderingMixInterstitialView addSubview:label2];

    UILabel *domainLabel = [[UILabel alloc] init];
    domainLabel.text = selfRenderingMixInterstitialView.domainString;
    domainLabel.textColor = [UIColor whiteColor];
    domainLabel.frame = CGRectMake(0, rect.size.height - 50, 200, 10);
    [selfRenderingMixInterstitialView addSubview:domainLabel];

    UILabel *sponsoredLabel = [[UILabel alloc] init];
    sponsoredLabel.text = selfRenderingMixInterstitialView.sponsorString;
    sponsoredLabel.textColor = [UIColor whiteColor];
    sponsoredLabel.frame = CGRectMake(120, rect.size.height - 30, 200, 30);
    [selfRenderingMixInterstitialView addSubview:sponsoredLabel];

    UILabel *label3 = [[UILabel alloc] init];
    label3.text = selfRenderingMixInterstitialView.ctaString;
    label3.textColor = [UIColor whiteColor];
    label3.frame = CGRectMake(120, rect.size.height - 90, 200, 40);
    [selfRenderingMixInterstitialView addSubview:label3];
    label3.layer.masksToBounds = YES;
    label3.layer.cornerRadius = 20;
    label3.backgroundColor = [UIColor blueColor];
    label3.textAlignment = NSTextAlignmentCenter;

    ATSelfRenderingMixInterstitialModel *mixInterstitialModel = [ATSelfRenderingMixInterstitialModel loadMixInterstitialModel:^(ATSelfRenderingMixInterstitialModel * _Nonnull mixInterstitialModel) {
        mixInterstitialModel.titleLabel = label;
        mixInterstitialModel.textLabel = label2;
        mixInterstitialModel.ctaView = label3;
        mixInterstitialModel.iconImageView = iconImage;
        mixInterstitialModel.domainLabel = domainLabel;
        mixInterstitialModel.advertiserLabel = sponsoredLabel;
    }];
    [selfRenderingMixInterstitialView bindViewRelation:mixInterstitialModel];

    if (mediaView) {
        [selfRenderingMixInterstitialView registerClickableViewArray:@[label,bigImage,mediaView,label2,label3,iconImage]];
    } else {
        [selfRenderingMixInterstitialView registerClickableViewArray:@[label,bigImage,label2,label3,iconImage]];
    }
}

温馨提示：

当您在后台设置开发者自渲染方式时，如果没在代码实现自渲染布局，则会默认用SDK内置的布局样式进行渲染。

当您后台设置开发者自渲染方式并且有在代码设置自渲染布局时，广告背景默认是全透明的，您需要自行实现半屏和全屏的效果。
